Bearings Products

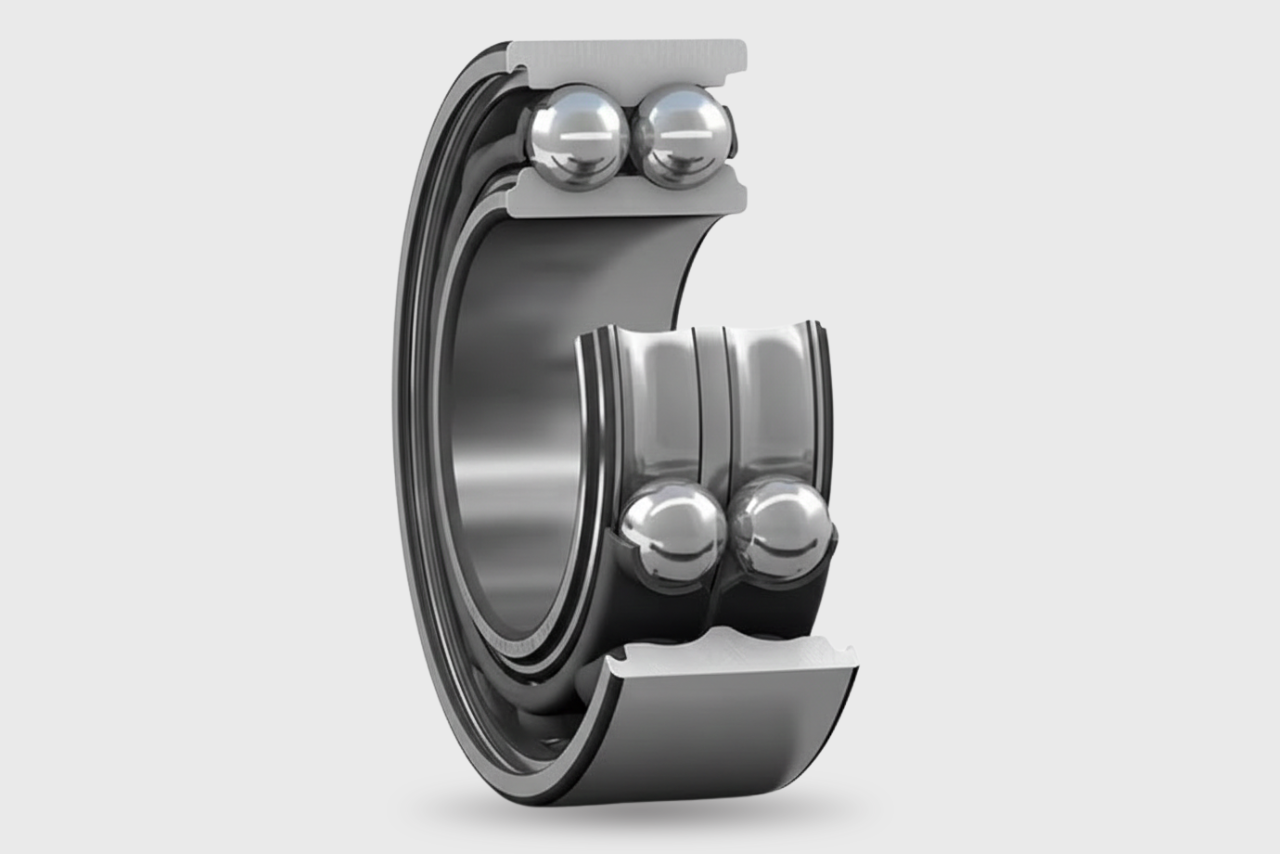

Double Row Angular Contact Ball Bearing | 0 |

Double Row Angular Contact Ball Bearing is a sophisticated engineering component designed to operate in demanding mechanical environments where installation....

➜ View More

Double Row Angular Contact Ball Bearing | 0 |

Double Row Angular Contact Ball Bearing is a sophisticated engineering component designed to operate in demanding mechanical environments where installation space is limited. It features two rows of balls arranged in a back-to-back configuration, effectively delivering the performance of two single-row bearings within a single outer ring.

This internal design enables the bearing to support heavy radial loads along with substantial axial loads in both directions simultaneously. It also provides high tilting stiffness to resist moment loads. Due to its rigid construction, it is ideal for applications requiring precise shaft guidance and minimal deflection, such as centrifugal pumps and automotive wheel hubs.

ISO Metric Series (03xxx)

03200 Series (Light Series): Designed for compact spaces with moderate radial and axial loads.
03300 Series (Medium Series): Larger balls and thicker rings for higher load capacity.
03000 Series (Ultra-Light Series): Suitable for very compact machinery with strict dimensional limitations.

North American / ANSI Series (05xxx)

05200 Series: Equivalent to the ISO 03200 series.
05300 Series: Equivalent to the ISO 03300 series.

Common Suffixes

A: Optimized internal design (no filling slots).
ZZ / 2Z: Two metal shields for grease retention.
2RS1 / 2RSH: Two contact rubber seals for harsh environments.
TN9 / TVH: Reinforced polyamide (plastic) cage.
M: Machined brass cage for heavy-duty vibration applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion resistance (e.g., S3205).
F: Flanged outer ring design.
W: Stainless steel (used in some metric series).
TS / S: Heat-treated for thermal stability at high temperatures.

Self Aligning Ball Bearing | 1 |

A Self-Aligning Ball Bearing is an advanced engineering solution designed for applications where shaft misalignment is a common challenge. It features two....

➜ View More

Self Aligning Ball Bearing | 1 |

A Self-Aligning Ball Bearing is an advanced engineering solution designed for applications where shaft misalignment is a common challenge. It features two rows of balls running on a common sphered raceway in the outer ring. This unique geometry allows the inner ring, balls, and cage to rotate freely around the bearing center, automatically compensating for static or dynamic angular misalignment caused by shaft deflection or housing inaccuracies.

While highly effective in handling radial loads, its point-contact design limits axial load capacity compared to other bearing types. It is widely used in long shaft systems, textile machinery, and other applications where maintaining perfect alignment is difficult.

ISO Metric Series (1xxx / 2xxx)

1200 Series (Light Series): Narrow width design suitable for compact spaces with moderate radial load requirements.
1300 Series (Medium Series): Built with larger balls and thicker rings to manage stronger radial forces.
2200 / 2300 Series (Wide Series): Wider versions offering higher load ratings and often available with seals.

Tapered Bore Options (K Series)

1200K / 2200K Series: Same functional performance as cylindrical bore versions but designed for use with adapter sleeves, allowing easier mounting on smooth shafts.

Common Suffixes

K: Tapered bore (taper 1:12).
E: Optimized internal design for increased load capacity.
2RS1: Contact seals on both sides (typically NBR) for protection against dust and moisture.
TN9 / TVH: Injection-molded glass-fiber reinforced Polyamide 6,6 cage.
M: Machined brass cage, suitable for high-vibration or high-speed applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments such as food processing.
W: Often used to denote specific stainless steel metric series.
F: Flanged outer ring design for axial location requirements.
HT: High temperature version rated for extreme thermal conditions.

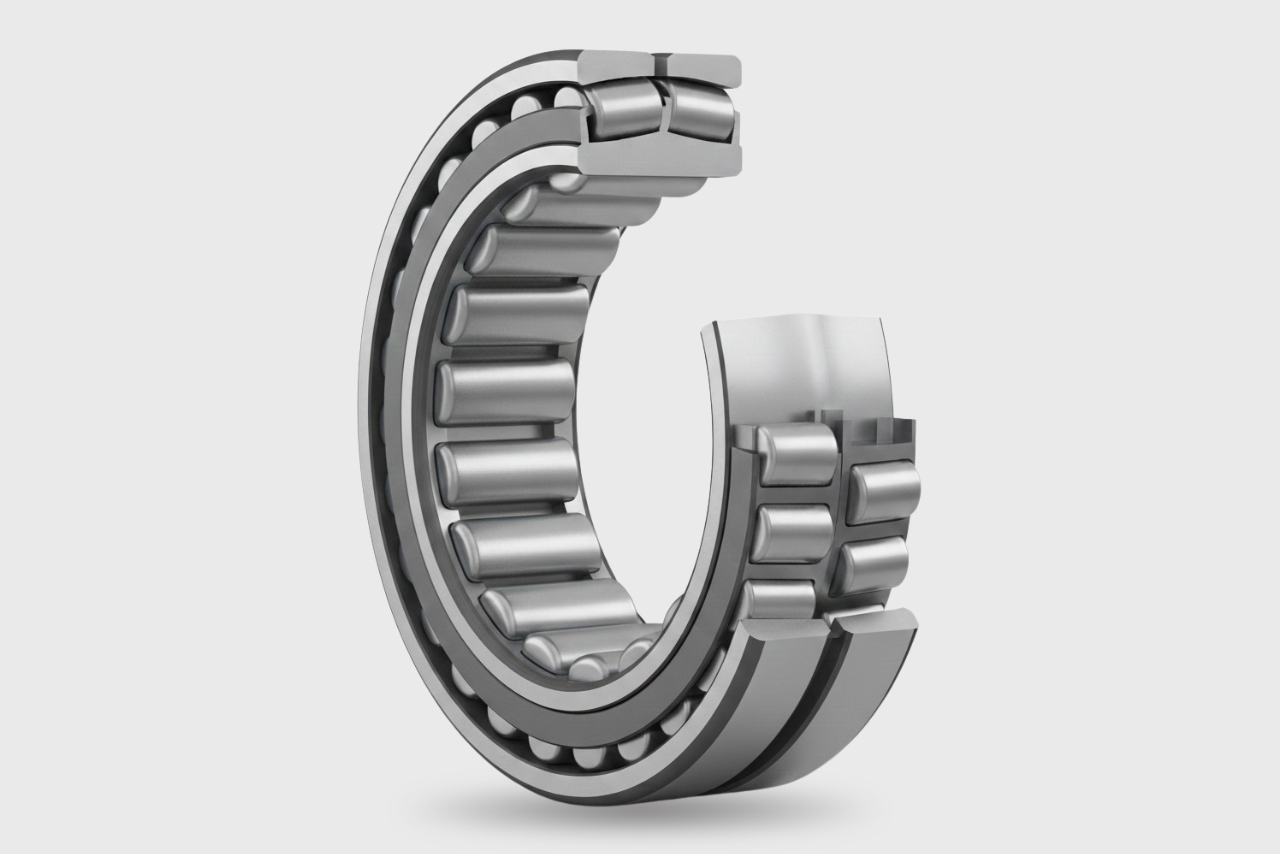

Spherical Roller Bearing | 2 |

A Spherical Roller Bearing is a robust engineering solution developed for heavy-duty applications where severe shaft misalignment and heavy loads are....

➜ View More

Spherical Roller Bearing | 2 |

A Spherical Roller Bearing is a robust engineering solution developed for heavy-duty applications where severe shaft misalignment and heavy loads are common challenges. It features two rows of barrel-shaped rollers running on a common sphered raceway in the outer ring. This advanced internal geometry allows the bearing to be self-aligning, automatically compensating for static or dynamic angular misalignment caused by shaft deflection or installation inaccuracies.

Unlike ball bearings, its line-contact roller design delivers exceptionally high radial load capacity along with the ability to support substantial axial loads in both directions. It is widely used in mining equipment, paper mills, crushers, vibrating screens, and maritime gearboxes where maximum durability and reliability are essential.

ISO Metric Series (2xxxx)

21300 Series (Light Series): Smaller cross-section suitable for applications with limited installation space and higher speed requirements.
22200 Series (Standard Series): The most commonly used series, offering an optimal balance between load capacity and service life.
22300 / 23000 Series (Heavy / Wide Series): Designed with larger rollers and wider rings to withstand extreme radial forces and shock loads.

Tapered Bore Options (K Series)

22200K / 22300K Series: Same performance as cylindrical bore versions but designed for use with adapter or withdrawal sleeves, allowing easier mounting and dismounting.

Common Suffixes

K / K30: Tapered bore (K = 1:12 taper; K30 = 1:30 taper for wider series such as 240).
CC / W33: Optimized internal design for reduced friction; W33 indicates lubrication groove and holes in the outer ring.
2CS / 2RS: Integrated contact seals on both sides for protection against contaminants and grease retention.
CA / ECA: One-piece machined brass cage with retaining flanges for maximum load-carrying performance.
E / E1: Enhanced high-capacity or X-life designs with improved materials and optimized internal geometry.

Common Prefixes

S / SS: Stainless steel construction for corrosion resistance in chemical or marine environments.
F: Flanged outer ring design for simplified housing and axial positioning.
VA405: Special version for vibratory applications such as screens or compactors with hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme thermal conditions.

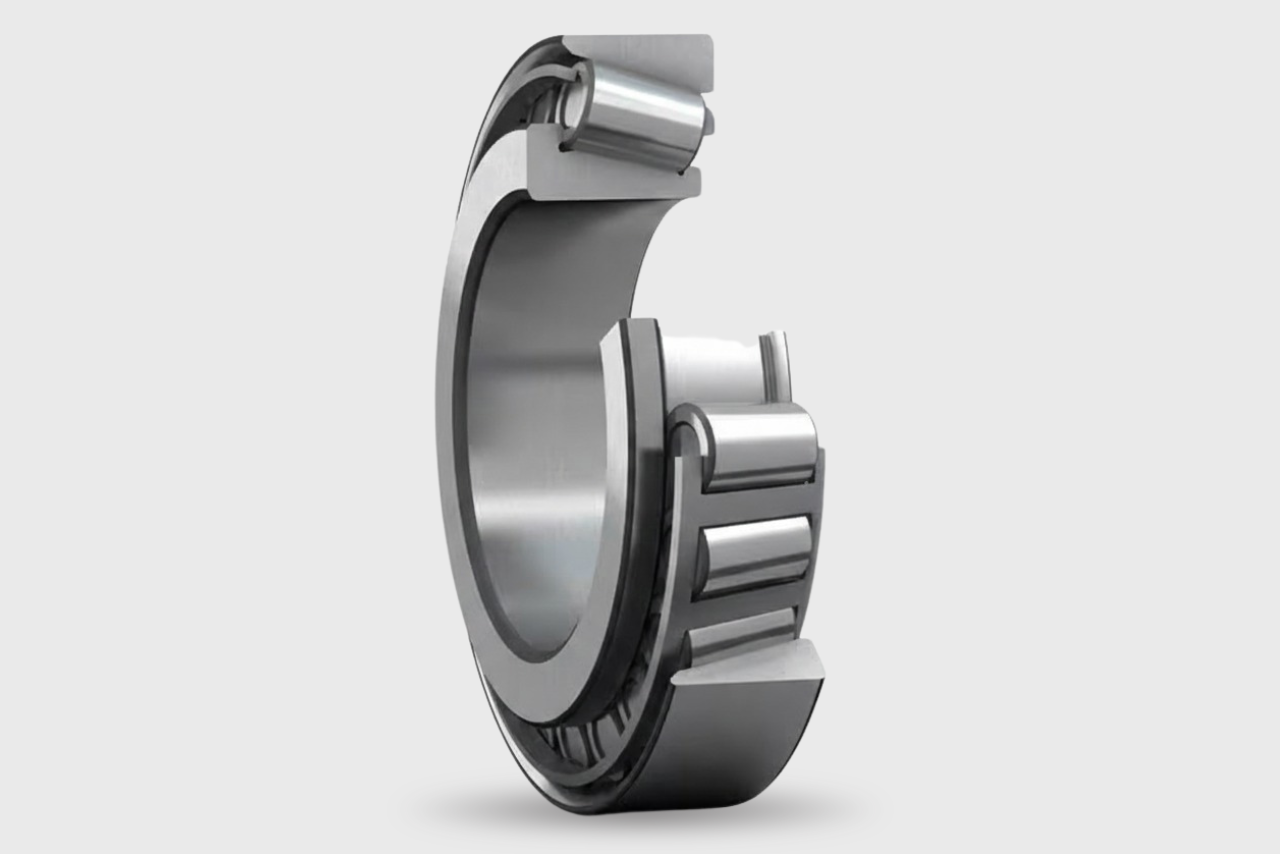

Tapered Roller Bearing | 3 |

A Tapered Roller Bearing is a robust engineering solution designed for heavy-duty applications where high combined loads and precise shaft guidance are critical requirements....

➜ View More

Tapered Roller Bearing | 3 |

A Tapered Roller Bearing is a robust engineering solution designed for heavy-duty applications where high combined loads and precise shaft guidance are critical requirements. It features tapered inner and outer ring raceways with tapered rollers arranged between them, converging at a single point on the bearing axis. This unique internal geometry enables the bearing to efficiently handle heavy radial loads along with substantial axial loads simultaneously by distributing forces evenly across the contact lines.

Unlike ball bearings, its line-contact design provides exceptionally high load-carrying capacity and superior rigidity to resist deflection under extreme conditions. It is widely used in automotive transmissions, construction machinery, and railway axle boxes where durability and reliability are essential.

ISO Metric Series (3xxxx)

30200 Series (Light Series): Smaller cross-section suitable for limited installation space with high-speed performance requirements.
32200 Series (Standard Series): The most commonly used type, offering a balanced combination of high load capacity and long service life.
32300 / 31300 Series (Heavy / Steep-Angle Series): Designed with larger rollers or steeper contact angles to withstand extreme radial forces and high thrust loads.

Inch Series (L / LM / HM)

LM / M Series: Light to medium-duty options sized in inches, functionally equivalent to metric versions for easier integration into imperial-based machinery.

Common Suffixes

A / B: Steeper contact angle (B indicates a higher angle for increased axial load capacity).
X: Modified dimensions to conform to ISO standards; may indicate optimized internal geometry.
DF / DB: Matched bearing sets arranged in Face-to-Face or Back-to-Back configurations for multi-directional thrust handling.
Q / CL7C: Optimized internal design for reduced friction and high-precision performance.
P5 / P6: Higher precision classes with tighter tolerances for high-speed or high-accuracy applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion resistance in chemical or marine environments.
F: Flanged outer ring design for simplified housing and axial positioning.
SET: Pre-matched cup and cone sets commonly used in the automotive aftermarket.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme thermal conditions.

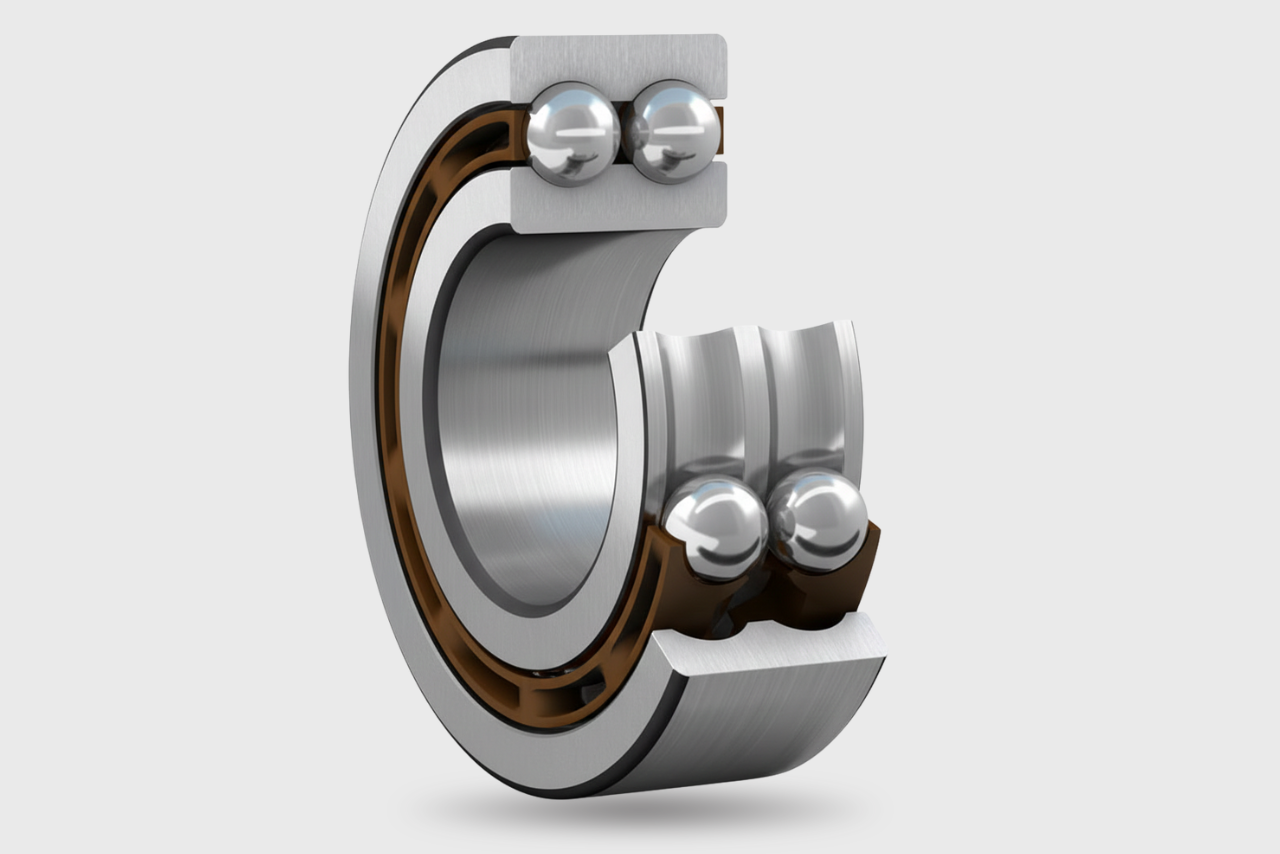

Double Row Deep Groove Ball Bearing | 4 |

A Double Row Deep Groove Ball Bearing is a robust engineering solution developed for high-speed applications where radial load requirements exceed the capacity....

➜ View More

Double Row Deep Groove Ball Bearing | 4 |

A Double Row Deep Groove Ball Bearing is a robust engineering solution developed for high-speed applications where radial load requirements exceed the capacity of single-row bearings within compact housing spaces. It features two rows of balls running in deep, uninterrupted raceway grooves on both the inner and outer rings. This internal geometry makes the bearing highly versatile, allowing it to efficiently support heavy radial loads while also handling axial loads in both directions at very high operating speeds.

Unlike roller bearings, its point-contact ball design ensures exceptionally low friction, smooth rotation, and minimal noise or vibration throughout its service life. It is widely used in precision electric motors, fans, pumps, and agricultural machinery where consistent performance and reliability are essential.

ISO Metric Series (4xxxx)

4200 Series (Light Series): Smaller cross-section suitable for limited installation space and high-speed requirements.
4300 Series (Standard Series): The most commonly used series, offering a balanced combination of load capacity and service life.
4400 / 4000 Series (Heavy / Wide Series): Designed with larger balls and wider rings to withstand higher radial forces and shock loads.

Sealed and Shielded Options

4200-2RS / 4300-2Z Series: Same functional performance as open versions but equipped with integrated seals or shields for improved protection and maintenance-free operation.

Common Suffixes

2RS1 / 2RSH: Contact rubber seals on both sides (typically NBR) for protection against contaminants and grease retention.
ZZ / 2Z: Non-contact metal shields on both sides for low-friction performance.
TN9 / TVH: Glass fiber reinforced polyamide cages for smooth and reliable operation.
M / MA: Machined brass cage guided by the outer ring for high load-carrying capacity.
C3 / C4: Increased internal clearance greater than Normal for high-speed or high-temperature applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion resistance in chemical or marine environments.
F: Flanged outer ring design for simplified housing and axial positioning.
W: Wide inner ring design for specific mounting configurations.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme operating conditions.

Thrust Ball Bearing | 5 |

A Thrust Ball Bearing is a specialized engineering solution developed for axial-duty applications where high thrust loads and precise axial positioning are critical....

➜ View More

Thrust Ball Bearing | 5 |

A Thrust Ball Bearing is a specialized engineering solution developed for axial-duty applications where high thrust loads and precise axial positioning are critical requirements. It consists of a row of balls positioned between two flat washers (a shaft washer and a housing washer) with grooved raceways. This internal configuration enables the bearing to efficiently support axial forces but it cannot accommodate radial loads or significant angular misalignment.

Unlike radial bearings, its perpendicular contact design delivers high axial load capacity and smooth performance under heavy thrust conditions. Thrust ball bearings are commonly used in crane hooks, heavy-duty jacks, vertical shafts, and steering mechanisms where reliable axial load support is essential.

ISO Metric Series (5xxxx)

51100 Series (Light Series): Compact cross-section suitable for limited installation space and moderate thrust loads.
51200 Series (Standard Series): The most widely used series, offering a balanced combination of load capacity and service life.
51300 / 51400 Series (Heavy / Wide Series): Designed with larger balls and wider washers to withstand extreme axial forces and shock loads.

Double Direction Options (52xxx Series)

52200 / 52300 Series: Equipped with a center washer and two rows of balls, allowing axial load support in both directions for stepped shaft applications.

Common Suffixes

U: Sphered housing washer (used with a seating washer to allow initial alignment compensation).
F: Machined steel cage for improved ball guidance and reduced friction.
2RS: Contact seals on both sides for protection against contaminants and grease retention.
M / MA: One-piece machined brass cage designed for high load capacity.
P5 / P6: Higher precision classes for improved running accuracy and tighter tolerances.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant applications.
F: Flanged washer design for simplified housing arrangements.
W: Stainless steel metric series for specific industrial requirements.
HT: High-temperature version with heat-stabilized components and specialized lubricants.

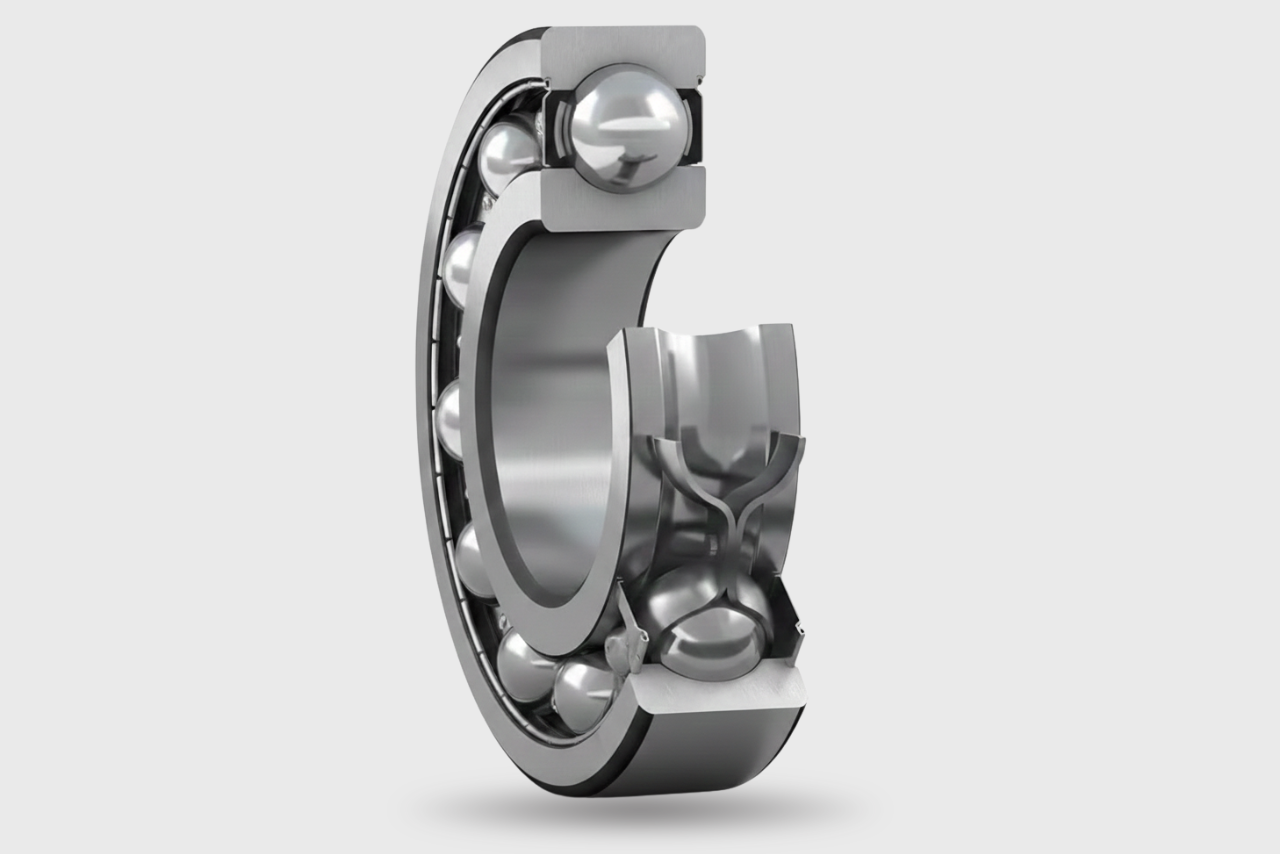

Single Row Deep Groove Ball Bearing | 6 |

A Single Row Deep Groove Ball Bearing is a versatile engineering solution designed for general-purpose applications where high speeds and low friction....

➜ View More

Single Row Deep Groove Ball Bearing | 6 |

A Single Row Deep Groove Ball Bearing is a versatile engineering solution designed for general-purpose applications where high speeds and low friction are essential. It consists of a single row of balls running in deep, uninterrupted raceway grooves in both the inner and outer rings. This internal geometry allows the bearing to efficiently handle radial loads and moderate axial loads in both directions at very high rotational speeds.

Unlike roller bearings, its point-contact design provides exceptionally low torque, minimal noise, and vibration throughout its service life. It is commonly used in electric motors, household appliances, office equipment, and other applications where efficiency and quiet operation are critical.

ISO Metric Series (6xxxx)

6000 Series (Extra-Light Series): Compact cross-section suitable for limited installation space and high-speed requirements.
6200 Series (Light Series): The most commonly used series, offering a balance of load capacity and service life.
6300 / 6400 Series (Medium / Heavy Series): Designed with larger balls and wider rings to handle higher radial forces and shock loads.

Narrow and Inch Options (6xxx Series)

61800 / 61900 Series: Thin-section designs for compact machinery, robotics, or aerospace applications; functionally identical to standard versions with easier mounting and reduced weight.

Common Suffixes

Z / ZZ: Metal shields on one or both sides for dust protection and grease retention.
RS1 / 2RS1: Contact seals on one or both sides for protection against contaminants and grease retention.
TN9 / TVH: Reinforced glass-fiber polyamide cages for quiet operation and reduced rotational weight.
M / MA: One-piece machined brass cage with retaining flanges for maximum load capacity.
C3 / C4: Increased internal clearance for higher speed or thermal expansion applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring design for simplified housing and axial positioning.
W: Wide inner ring versions often featuring hardened cages for special applications.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme heat conditions.

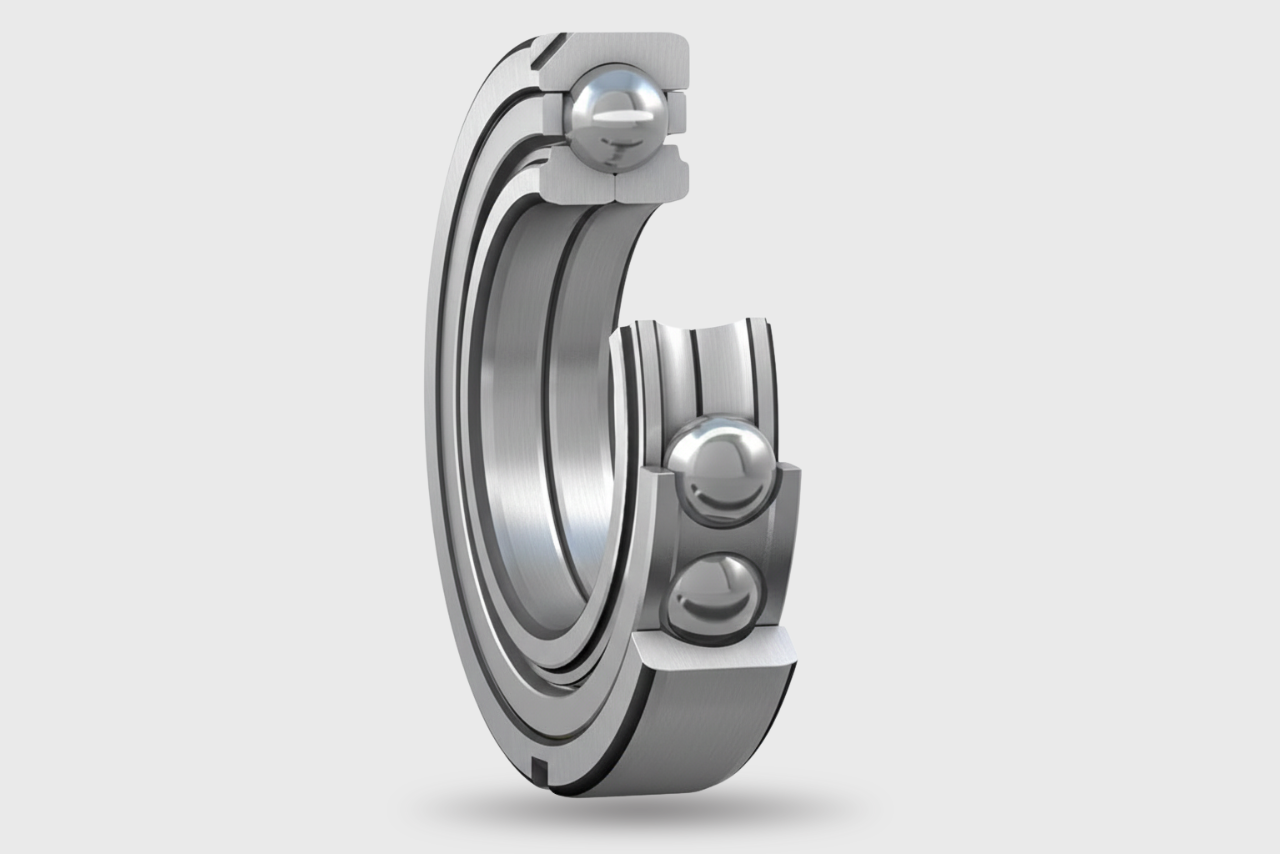

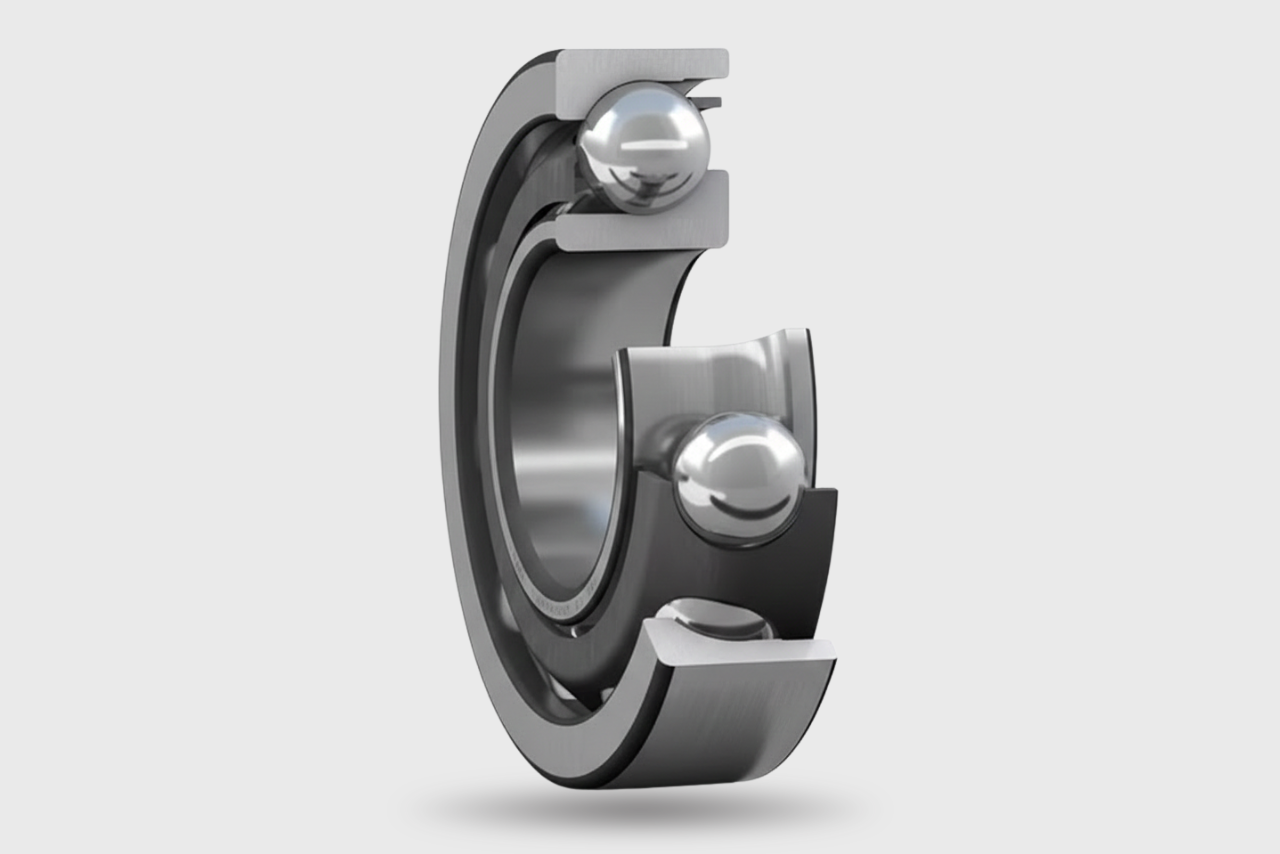

Single Row Angular Contact Ball Bearing | 7 |

A Single Row Angular Contact Ball Bearing is a robust engineering solution designed for high-precision applications where combined radial and high axial loads....

➜ View More

Single Row Angular Contact Ball Bearing | 7 |

A Single Row Angular Contact Ball Bearing is a robust engineering solution designed for high-precision applications where combined radial and high axial loads are critical. It features inner and outer ring raceways displaced relative to each other along the bearing axis. This geometry allows the bearing to support radial loads and significant axial loads in one direction by transmitting force through a specific contact angle.

Unlike standard ball bearings, its offset-contact design provides high rigidity and the ability to operate at high speeds with extreme accuracy. It is commonly used in machine tool spindles, pumps, electric motors, and other precision machinery where reliable high-speed performance is essential.

ISO Metric Series (7xxxx)

7200 Series (Light Series): Compact cross-section suitable for limited space and high-speed requirements.
7300 Series (Standard Series): The most commonly used series, offering a balance of load capacity and long service life.
7400 / 7000 Series (Heavy / Thin Series): Designed with larger balls or specialized rings to handle extreme radial and axial forces.

Universal Matching Options (G Series)

7200BG / 7300BG Series: Designed for pairing in sets, enabling easier mounting and optimized load distribution on smooth or stepped shafts.

Common Suffixes

AC / B: Contact angle (AC = 25° for high-speed; B = 40° for higher axial load capacity).
P5 / P4: High-precision ratings for reduced friction and tight tolerances.
2RS / 2RZ: Contact seals on both sides for protection against contaminants and grease retention.
M / MA: One-piece machined brass cage with retaining flanges for maximum load capacity.
DB / DF: Matched bearing sets (Back-to-Back or Face-to-Face) for improved life and performance.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring design for simplified housing and axial positioning.
V: Full complement of balls (no cage) for applications requiring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme conditions.

Cylindrical Roller Thrust Bearing | 8 |

A Cylindrical Roller Thrust Bearing is a robust engineering solution designed for heavy-duty applications where severe axial thrust and high peak loads....

➜ View More

Cylindrical Roller Thrust Bearing | 8 |

A Cylindrical Roller Thrust Bearing is a robust engineering solution developed for heavy-duty applications where severe axial thrust and high peak loads are common challenges. It features a single row of cylindrical rollers positioned radially between a shaft-centered washer and a housing-centered washer. This internal geometry allows the bearing to efficiently support massive axial forces but it cannot accommodate radial loads or significant angular misalignment.

Unlike ball bearings, its line-contact roller design provides exceptionally high axial load capacity and smooth operation under shock loads in one specific direction. Cylindrical roller thrust bearings are commonly used in oil drilling rigs, heavy extruders, cranes, and other machinery where axial load durability is critical.

ISO Metric Series (8xxxx)

81100 Series (Light Series): Compact cross-section suitable for limited space and high-speed requirements.
81200 Series (Standard Series): The most widely used series, offering a balance of axial load capacity and service life.
89300 / 89400 Series (Heavy / Wide Series): Designed with larger rollers and wider washers to handle extreme axial forces and shock loads.

Component-Based Options (K Series)

K81100 / K81200 Series: Separate components for flexible assembly, easier mounting, and custom applications on smooth or stepped shafts.

Common Suffixes

LP: Optimized internal design for reduced friction and special roller guidance.
TN / TV: Reinforced glass fiber polyamide cages for light weight and protection against contaminants.
2RS: Contact seals on both sides for protection against dust, dirt, and grease retention.
M / MA: One-piece machined brass cage with retaining flanges for maximum load capacity.
HB1 / HB3: Enhanced surface hardness or high-capacity designs for extended life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
GS: Housing washer design for simplified assembly and axial positioning.
WS: Shaft washer versions for specialized mounting applications, often hardened.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme heat conditions.

Insert Bearing | Y |

An Insert Bearing (Y-Bearing) is a robust engineering solution designed for mounted applications where simple assembly and moderate shaft misalignment are persistent challenges. Structurally....

➜ View More

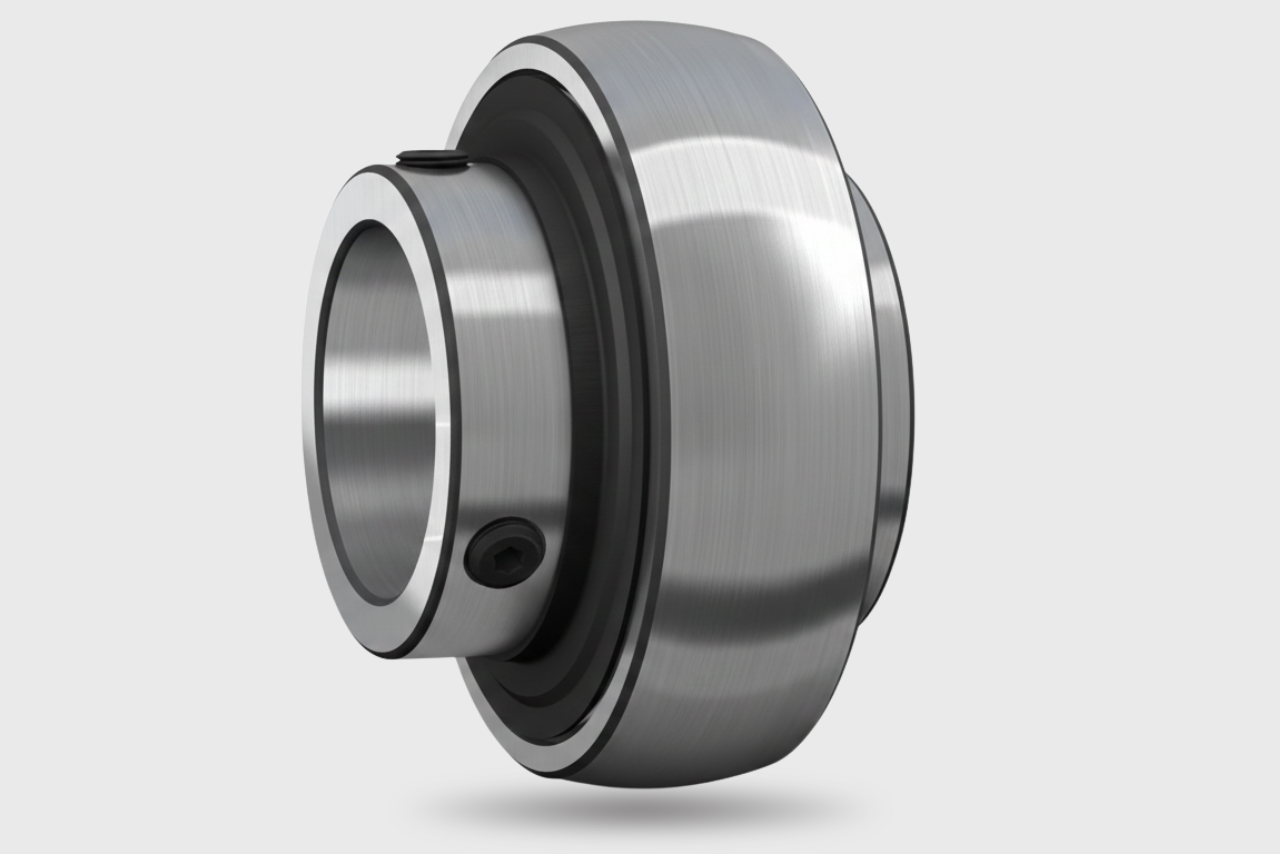

Insert Bearing | Y |

An Insert Bearing (Y-Bearing) is a robust engineering solution designed for mounted applications where simple assembly and moderate shaft misalignment are critical. It features a single row of balls within an extended inner ring and a sphered outer ring surface that fits into a matching housing. This geometry allows the bearing to self-align, compensating automatically for initial static angular misalignment caused by housing inaccuracies or mounting errors.

Unlike standard bearings, its specialized locking design provides exceptionally easy installation and can handle significant radial loads in both directions. Y-Bearings are commonly used in agricultural machinery, conveyor systems, and food processing lines where serviceability is critical.

ISO Metric Series (YAR / YET)

YAR 200 Series (Heavy Series): Extended inner ring on both sides; suitable for applications with limited space but high-speed requirements.
YET 200 Series (Light Series): Standard type; offers a balance of load capacity and service life.
YEL / YSA Series (Specialized Series): Eccentric locking collars and wider rings to handle extreme radial forces and shock loads.

Locking Method Options (Grub / Eccentric)

YAR 205 / YET 205 Series: Functionally identical to standard versions; designed for easier mounting and secure attachment on smooth or stepped shafts.

Common Suffixes

2F / 2RF: Integral contact seals on both sides (F = standard; RF = multiple) for protection against contaminants and grease retention.
G2 / W33: Optimized internal design for relubrication; G2 indicates annular groove and lubrication holes in outer ring.
2RS / 2CS: Contact seals on both sides for protection against contaminants and grease retention.
VP / VA: One-piece reinforced composite or stainless steel cage for maximum load-carrying capacity.
E / E1: Enhanced X-life or high-capacity designs using advanced materials and geometry for longer life.

Common Prefixes

S / SS: Stainless Steel for corrosion resistance in chemical or marine environments.
F: Flanged outer ring for simplified housing and axial positioning.
UC / UK: Designed for Japanese industrial standards, featuring hardened cages.
HT: High Temperature; rings are heat-stabilized and compatible with high-temp lubricants.

Needle Roller Bearing | NA |

A Needle Roller Bearing (NA Type) is a robust engineering solution designed for heavy-duty applications where high radial load capacity and precision....

➜ View More

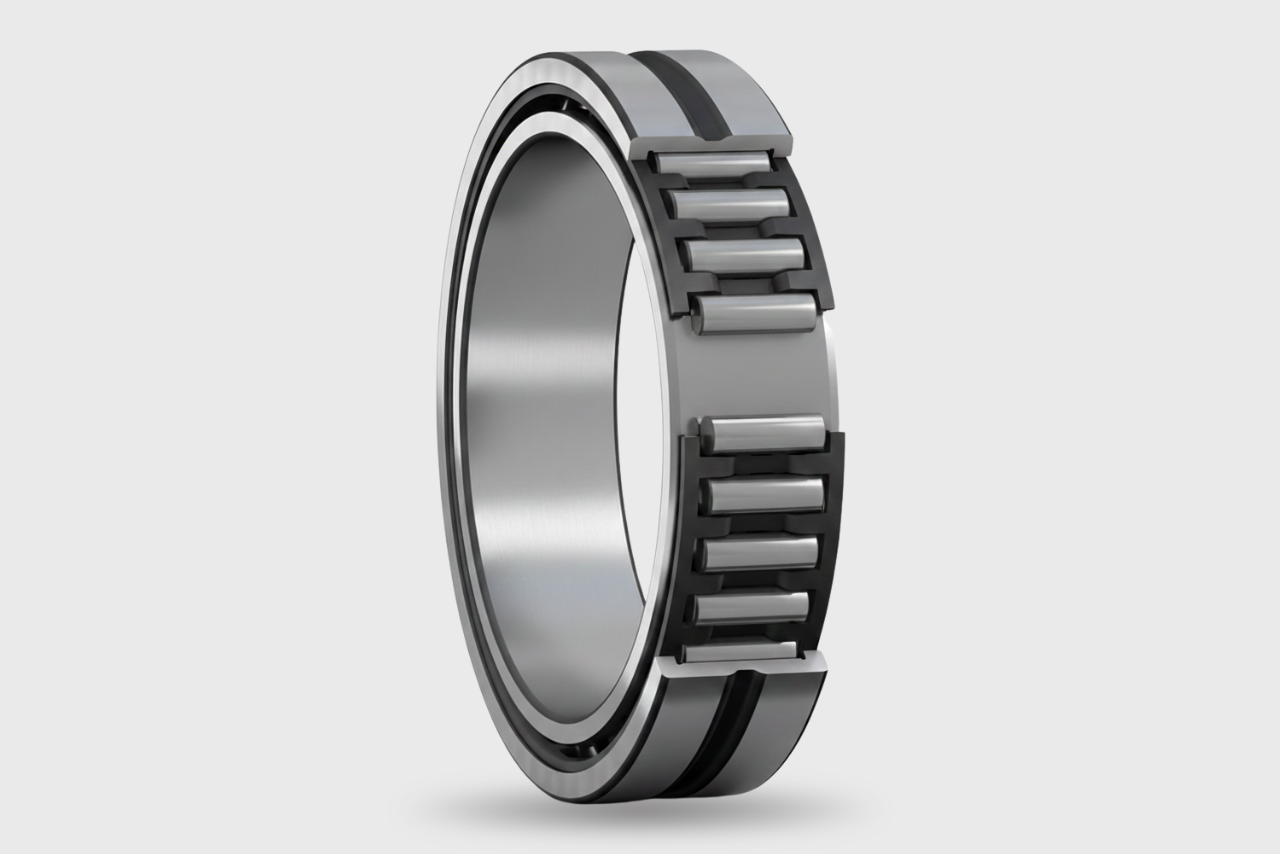

Needle Roller Bearing | NA |

A Needle Roller Bearing (NA Type) is a robust engineering solution designed for heavy-duty applications where high radial load capacity and precision in a compact space are critical. It features a single row of needle rollers held between an outer ring with integral flanges and a removable inner ring. This geometry allows the bearing to handle high radial forces while providing the option for separate mounting of the inner and outer rings during installation.

Unlike ball bearings, its line-contact design provides exceptionally high radial load capacity but cannot accommodate axial loads unless used with thrust washers. NA Type needle roller bearings are commonly used in transmissions, engine valve trains, and industrial machinery where durability is essential.

ISO Metric Series (NA 4xxx / 6xxx)

NA 4800 Series (Light Series): Compact cross-section suitable for limited space and high-speed applications.
NA 4900 Series (Standard Series): The most commonly used series, offering a balance of load capacity and service life.
NA 6900 / NA 5900 Series (Heavy / Wide Series): Built with larger rollers and wider rings to handle extreme radial forces and shock loads.

Separable Ring Options (RNA Series)

RNA 4900 / RNA 6900 Series: Design without inner ring for direct use on hardened shafts; functionally identical to NA versions but allow easier mounting and reduced radial height.

Common Suffixes

RS / 2RS: Integral contact seals on one or both sides for protection against contaminants and grease retention.
TN / TV: Reinforced glass fiber polyamide cages for reduced friction; often includes annular groove and lubrication holes.
P5 / P6: Enhanced precision classes for tighter tolerances; protection against contaminants and grease retention.
M / MA: One-piece machined brass cage or steel cage for maximum load-carrying capacity.
XL: Enhanced X-life or high-capacity designs using advanced materials and geometry for longer life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring for simplified housing and axial positioning.
NK: Specifically designed for needle roller bearings without inner rings, featuring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme conditions.

Four Point Contact Ball Bearing | QJ |

A Four-Point Contact Ball Bearing (QJ Series) is a robust engineering solution designed for high-precision applications where space-saving axial support and combined....

➜ View More

Four Point Contact Ball Bearing | QJ |

A Four-Point Contact Ball Bearing (QJ Series) is a robust engineering solution designed for high-precision applications where space-saving axial support and combined loads are critical. It features a single row of balls and a split inner ring that creates four distinct contact points on the gothic-arch raceways. This geometry allows the bearing to handle radial loads and significant axial loads in both directions within a very narrow footprint.

Unlike standard ball bearings, its unique-contact design provides exceptionally high axial load capacity and can replace two angular contact bearings in a single unit. Four-point contact bearings are commonly used in tractor transmissions, industrial gearboxes, and locomotive drive systems where compactness and space efficiency are essential.

ISO Metric Series (QJ 2xx / 3xx)

QJ 200 Series (Light Series): Compact cross-section suitable for limited space and high-speed applications.
QJ 300 Series (Standard Series): The most commonly used series, offering a balance of load capacity and service life.
QJ 1000 / QJ 1200 Series (Specialized Series): Designed with larger balls and wider rings to handle extreme radial forces and shock loads.

Split Ring Mounting Options (N2 Series)

QJ 200N2 / QJ 300N2 Series: Outer ring locating slots for pins to prevent rotation; functionally identical to standard versions but allow easier mounting and housing stability on smooth or stepped shafts.

Common Suffixes

MA / MB: Machined brass cage (outer or inner ring guided); MB indicates guidance by the inner ring.
N2: Two locating slots at 180° in the outer ring to prevent spinning, including lubrication holes.
PH: Injection-molded polyetheretherketone (PEEK) cage for protection against contaminants and grease retention.
MPA: One-piece machined brass cage with retaining flanges for maximum load-carrying capacity.
C3 / C4: Internal clearance greater than Normal, using advanced materials and geometry for longer service life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring for simplified housing and axial positioning.
V: Full complement of balls (no cage) for applications featuring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme conditions.

Needle Roller Bearing | HK |

A Needle Roller Bearing (HK Type) is a robust engineering solution designed for space-constrained applications where extreme radial compactness and heavy....

➜ View More

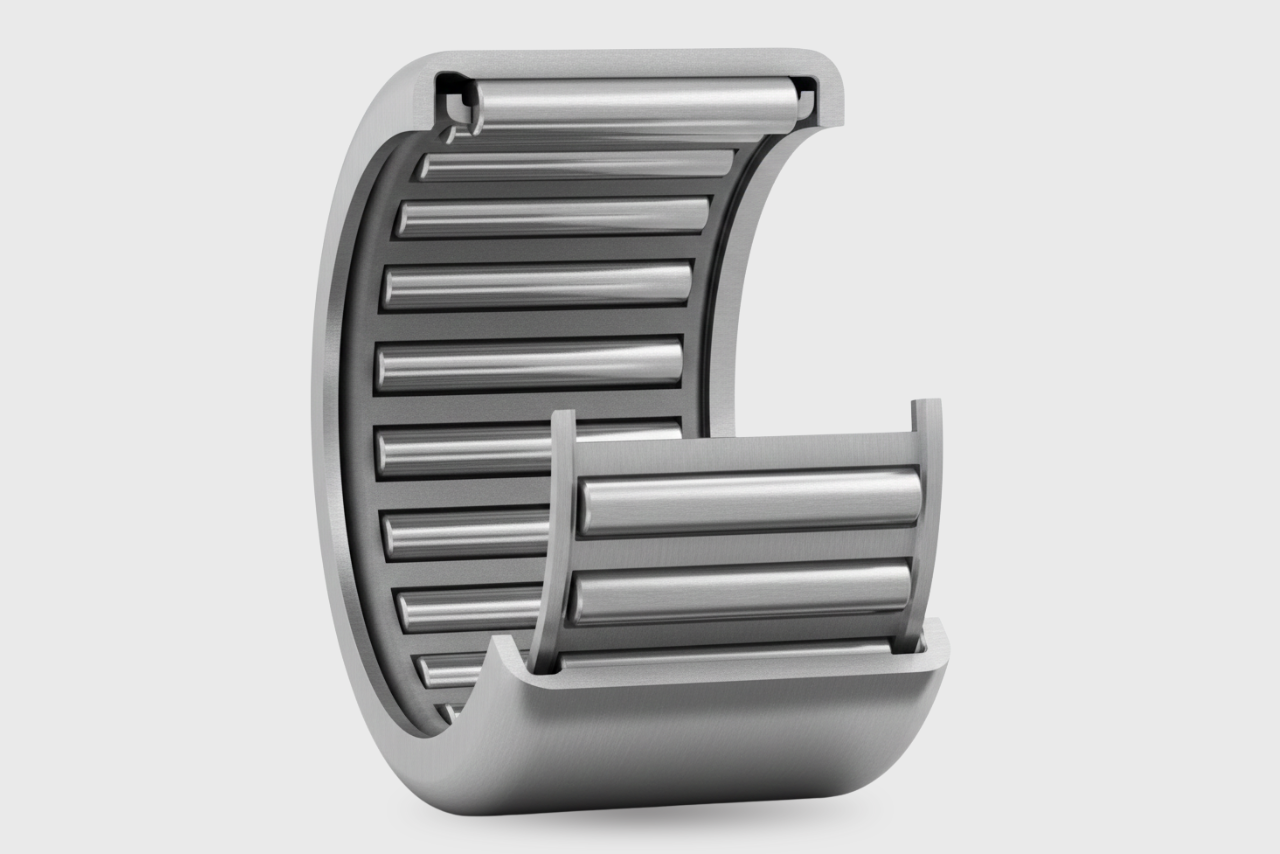

Needle Roller Bearing | HK |

A Needle Roller Bearing (HK Type) is a robust engineering solution designed for space-constrained applications where extreme radial compactness and heavy loads are critical. It features a single row of thin, long cylindrical rollers held within a thin-walled, drawn outer cup that serves as the raceway. This geometry allows the bearing to handle high radial forces while occupying significantly less radial space than standard ball or roller bearings.

Unlike ball bearings, its line-contact design provides exceptionally high radial load capacity but cannot accommodate axial loads in either direction. HK Type needle roller bearings are commonly used in automotive transmissions, power tools, and aerospace components where low-profile and space efficiency are essential.

ISO Metric Series (HK xxxx)

HK 0800 Series (Light Series): Compact cross-section suitable for limited space and high-speed requirements.
HK 1500 Series (Standard Series): The most commonly used series, offering a balance of load capacity and service life.
HK 2200 / HK 3000 Series (Heavy / Wide Series): Built with longer rollers and wider cups to handle extreme radial forces and shock loads.

Closed End Options (BK Series)

BK 1512 / BK 2016 Series: Closed-end cup designs for environmental protection; functionally identical to open versions but allow easier sealing and lubricant retention.

Common Suffixes

RS / 2RS: Integral contact seals on one or both sides for protection against contaminants and grease retention.
TN / TV: Reinforced glass fiber polyamide cages for reduced weight and protection against contaminants.
AS1 / AS2: Thinner lubrication hole designs on one or both sides for protection against contaminants.
M / MA: One-piece machined brass cage or steel cage for maximum load-carrying capacity.
XL: Enhanced X-life or high-capacity designs using advanced materials and geometry for longer life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring for simplified housing and axial positioning.
IR / LR: Specifically designed inner rings for use with needle cages, featuring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme heat conditions.

Cylindrical Roller Bearing | N |

A Cylindrical Roller Bearing (N Series ) is a robust engineering solution designed for high-speed applications where significant radial expansion and heavy loads....

➜ View More

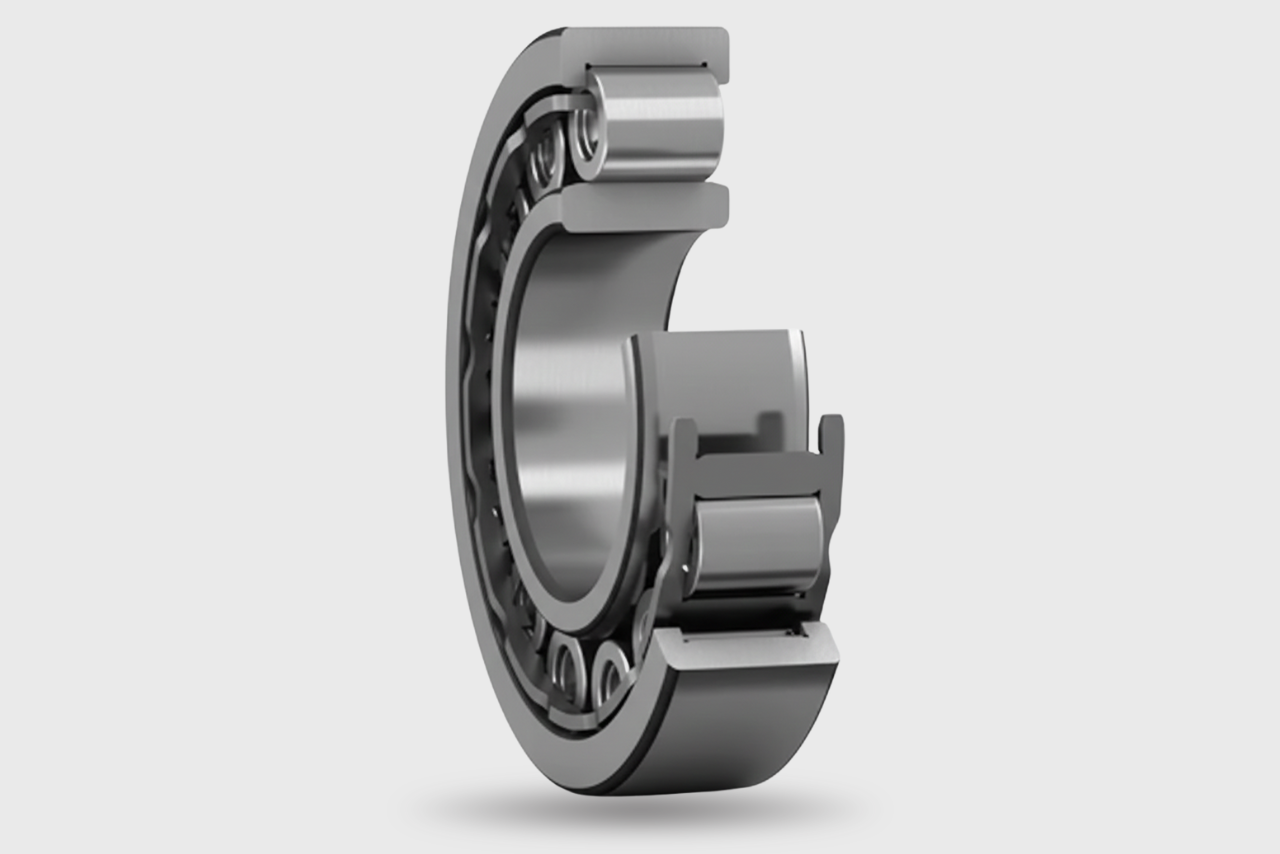

Cylindrical Roller Bearing | N |

A Cylindrical Roller Bearing (N Series) is a robust engineering solution developed for high-speed applications where significant radial expansion and heavy radial loads are common challenges. It consists of a single row of cylindrical rollers held between two integral flanges on the inner ring, while the outer ring has no flanges. This internal design allows the bearing to be non-locating, compensating automatically for axial displacement of the shaft relative to the housing caused by thermal expansion or installation errors.

Unlike ball bearings, its line-contact roller design provides exceptionally high radial load capacity but cannot accommodate axial loads in either direction. N Series cylindrical roller bearings are commonly used in electric motors, gearboxes, machine tool spindles, and other applications where axial flexibility is essential.

ISO Metric Series (N 2xx / 3xx)

N 200 Series (Light Series): Compact cross-section suitable for limited space and high-speed requirements.
N 300 Series (Medium Series): The most widely used series, offering a balance of load capacity and service life.
N 400 / N 2300 Series (Heavy / Wide Series): Designed with larger rollers and wider rings to handle extreme radial forces and shock loads.

Alternative Flange Options (NU/NJ/NUP)

NU 200 / NJ 300 Series: Different flange designs for locating or semi-locating positions, functionally identical to N versions but with mounting flexibility for smooth or stepped shafts.

Common Suffixes

E / EC: Optimized internal design for increased load capacity; EC includes annular groove and lubrication holes in the outer ring.
M / MA: Machined brass cage guided by rollers or outer ring, for protection against contaminants and grease retention.
TN9 / TVH: Reinforced glass fiber polyamide cages for high-speed operation and contamination protection.
P5 / P6: Enhanced precision or high-accuracy designs for maximum load-carrying capacity.
C3 / C4: Internal clearance greater than Normal, using advanced materials and internal geometry for longer service life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring for simplified housing and axial positioning.
RN: Designed without an outer ring, featuring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme heat conditions.

Double Row Angular Contact Ball Bearing | 0 |

Double Row Angular Contact Ball Bearing is a sophisticated engineering component designed to operate in demanding mechanical environments where installation....

➜ View More

Double Row Angular Contact Ball Bearing | 0 |

ISO Metric Series (03xxx)

03200 Series (Light Series): Designed for compact spaces with moderate radial and axial loads.
03300 Series (Medium Series): Larger balls and thicker rings for higher load capacity.
03000 Series (Ultra-Light Series): Suitable for very compact machinery with strict dimensional limitations.

North American / ANSI Series (05xxx)

05200 Series: Equivalent to the ISO 03200 series.
05300 Series: Equivalent to the ISO 03300 series.

Common Suffixes

A: Optimized internal design (no filling slots).
ZZ / 2Z: Two metal shields for grease retention.
2RS1 / 2RSH: Two contact rubber seals for harsh environments.
TN9 / TVH: Reinforced polyamide (plastic) cage.
M: Machined brass cage for heavy-duty vibration applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion resistance (e.g., S3205).
F: Flanged outer ring design.
W: Stainless steel (used in some metric series).
TS / S: Heat-treated for thermal stability at high temperatures.

Self Aligning Ball Bearing | 1 |

A Self-Aligning Ball Bearing is an advanced engineering solution designed for applications where shaft misalignment is a common challenge. It features two....

➜ View More

Self Aligning Ball Bearing | 1 |

ISO Metric Series (1xxx / 2xxx)

1200 Series (Light Series): Narrow width design suitable for compact spaces with moderate radial load requirements.
1300 Series (Medium Series): Built with larger balls and thicker rings to manage stronger radial forces.
2200 / 2300 Series (Wide Series): Wider versions offering higher load ratings and often available with seals.

Tapered Bore Options (K Series)

1200K / 2200K Series: Same functional performance as cylindrical bore versions but designed for use with adapter sleeves, allowing easier mounting on smooth shafts.

Common Suffixes

K: Tapered bore (taper 1:12).
E: Optimized internal design for increased load capacity.
2RS1: Contact seals on both sides (typically NBR) for protection against dust and moisture.
TN9 / TVH: Injection-molded glass-fiber reinforced Polyamide 6,6 cage.
M: Machined brass cage, suitable for high-vibration or high-speed applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments such as food processing.
W: Often used to denote specific stainless steel metric series.
F: Flanged outer ring design for axial location requirements.
HT: High temperature version rated for extreme thermal conditions.

Spherical Roller Bearing | 2 |

A Spherical Roller Bearing is a robust engineering solution developed for heavy-duty applications where severe shaft misalignment and heavy loads are....

➜ View More

Spherical Roller Bearing | 2 |

ISO Metric Series (2xxxx)

21300 Series (Light Series): Smaller cross-section suitable for applications with limited installation space and higher speed requirements.
22200 Series (Standard Series): The most commonly used series, offering an optimal balance between load capacity and service life.
22300 / 23000 Series (Heavy / Wide Series): Designed with larger rollers and wider rings to withstand extreme radial forces and shock loads.

Tapered Bore Options (K Series)

22200K / 22300K Series: Same performance as cylindrical bore versions but designed for use with adapter or withdrawal sleeves, allowing easier mounting and dismounting.

Common Suffixes

K / K30: Tapered bore (K = 1:12 taper; K30 = 1:30 taper for wider series such as 240).
CC / W33: Optimized internal design for reduced friction; W33 indicates lubrication groove and holes in the outer ring.
2CS / 2RS: Integrated contact seals on both sides for protection against contaminants and grease retention.
CA / ECA: One-piece machined brass cage with retaining flanges for maximum load-carrying performance.
E / E1: Enhanced high-capacity or X-life designs with improved materials and optimized internal geometry.

Common Prefixes

S / SS: Stainless steel construction for corrosion resistance in chemical or marine environments.
F: Flanged outer ring design for simplified housing and axial positioning.
VA405: Special version for vibratory applications such as screens or compactors with hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme thermal conditions.

Tapered Roller Bearing | 3 |

A Tapered Roller Bearing is a robust engineering solution designed for heavy-duty applications where high combined loads and precise shaft guidance are critical requirements....

➜ View More

Tapered Roller Bearing | 3 |

ISO Metric Series (3xxxx)

30200 Series (Light Series): Smaller cross-section suitable for limited installation space with high-speed performance requirements.
32200 Series (Standard Series): The most commonly used type, offering a balanced combination of high load capacity and long service life.
32300 / 31300 Series (Heavy / Steep-Angle Series): Designed with larger rollers or steeper contact angles to withstand extreme radial forces and high thrust loads.

Inch Series (L / LM / HM)

LM / M Series: Light to medium-duty options sized in inches, functionally equivalent to metric versions for easier integration into imperial-based machinery.

Common Suffixes

A / B: Steeper contact angle (B indicates a higher angle for increased axial load capacity).
X: Modified dimensions to conform to ISO standards; may indicate optimized internal geometry.
DF / DB: Matched bearing sets arranged in Face-to-Face or Back-to-Back configurations for multi-directional thrust handling.
Q / CL7C: Optimized internal design for reduced friction and high-precision performance.
P5 / P6: Higher precision classes with tighter tolerances for high-speed or high-accuracy applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion resistance in chemical or marine environments.
F: Flanged outer ring design for simplified housing and axial positioning.
SET: Pre-matched cup and cone sets commonly used in the automotive aftermarket.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme thermal conditions.

Double Row Deep Groove Ball Bearing | 4 |

A Double Row Deep Groove Ball Bearing is a robust engineering solution developed for high-speed applications where radial load requirements exceed the capacity....

➜ View More

Double Row Deep Groove Ball Bearing | 4 |

ISO Metric Series (4xxxx)

4200 Series (Light Series): Smaller cross-section suitable for limited installation space and high-speed requirements.
4300 Series (Standard Series): The most commonly used series, offering a balanced combination of load capacity and service life.
4400 / 4000 Series (Heavy / Wide Series): Designed with larger balls and wider rings to withstand higher radial forces and shock loads.

Sealed and Shielded Options

4200-2RS / 4300-2Z Series: Same functional performance as open versions but equipped with integrated seals or shields for improved protection and maintenance-free operation.

Common Suffixes

2RS1 / 2RSH: Contact rubber seals on both sides (typically NBR) for protection against contaminants and grease retention.
ZZ / 2Z: Non-contact metal shields on both sides for low-friction performance.
TN9 / TVH: Glass fiber reinforced polyamide cages for smooth and reliable operation.
M / MA: Machined brass cage guided by the outer ring for high load-carrying capacity.
C3 / C4: Increased internal clearance greater than Normal for high-speed or high-temperature applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion resistance in chemical or marine environments.
F: Flanged outer ring design for simplified housing and axial positioning.
W: Wide inner ring design for specific mounting configurations.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme operating conditions.

Thrust Ball Bearing | 5 |

A Thrust Ball Bearing is a specialized engineering solution developed for axial-duty applications where high thrust loads and precise axial positioning are critical....

➜ View More

Thrust Ball Bearing | 5 |

ISO Metric Series (5xxxx)

51100 Series (Light Series): Compact cross-section suitable for limited installation space and moderate thrust loads.
51200 Series (Standard Series): The most widely used series, offering a balanced combination of load capacity and service life.
51300 / 51400 Series (Heavy / Wide Series): Designed with larger balls and wider washers to withstand extreme axial forces and shock loads.

Double Direction Options (52xxx Series)

52200 / 52300 Series: Equipped with a center washer and two rows of balls, allowing axial load support in both directions for stepped shaft applications.

Common Suffixes

U: Sphered housing washer (used with a seating washer to allow initial alignment compensation).
F: Machined steel cage for improved ball guidance and reduced friction.
2RS: Contact seals on both sides for protection against contaminants and grease retention.
M / MA: One-piece machined brass cage designed for high load capacity.
P5 / P6: Higher precision classes for improved running accuracy and tighter tolerances.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant applications.
F: Flanged washer design for simplified housing arrangements.
W: Stainless steel metric series for specific industrial requirements.
HT: High-temperature version with heat-stabilized components and specialized lubricants.

Single Row Deep Groove Ball Bearing | 6 |

A Single Row Deep Groove Ball Bearing is a versatile engineering solution designed for general-purpose applications where high speeds and low friction....

➜ View More

Single Row Deep Groove Ball Bearing | 6 |

ISO Metric Series (6xxxx)

6000 Series (Extra-Light Series): Compact cross-section suitable for limited installation space and high-speed requirements.
6200 Series (Light Series): The most commonly used series, offering a balance of load capacity and service life.
6300 / 6400 Series (Medium / Heavy Series): Designed with larger balls and wider rings to handle higher radial forces and shock loads.

Narrow and Inch Options (6xxx Series)

61800 / 61900 Series: Thin-section designs for compact machinery, robotics, or aerospace applications; functionally identical to standard versions with easier mounting and reduced weight.

Common Suffixes

Z / ZZ: Metal shields on one or both sides for dust protection and grease retention.
RS1 / 2RS1: Contact seals on one or both sides for protection against contaminants and grease retention.
TN9 / TVH: Reinforced glass-fiber polyamide cages for quiet operation and reduced rotational weight.
M / MA: One-piece machined brass cage with retaining flanges for maximum load capacity.
C3 / C4: Increased internal clearance for higher speed or thermal expansion applications.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring design for simplified housing and axial positioning.
W: Wide inner ring versions often featuring hardened cages for special applications.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme heat conditions.

Single Row Angular Contact Ball Bearing | 7 |

A Single Row Angular Contact Ball Bearing is a robust engineering solution designed for high-precision applications where combined radial and high axial loads....

➜ View More

Single Row Angular Contact Ball Bearing | 7 |

ISO Metric Series (7xxxx)

7200 Series (Light Series): Compact cross-section suitable for limited space and high-speed requirements.
7300 Series (Standard Series): The most commonly used series, offering a balance of load capacity and long service life.
7400 / 7000 Series (Heavy / Thin Series): Designed with larger balls or specialized rings to handle extreme radial and axial forces.

Universal Matching Options (G Series)

7200BG / 7300BG Series: Designed for pairing in sets, enabling easier mounting and optimized load distribution on smooth or stepped shafts.

Common Suffixes

AC / B: Contact angle (AC = 25° for high-speed; B = 40° for higher axial load capacity).
P5 / P4: High-precision ratings for reduced friction and tight tolerances.
2RS / 2RZ: Contact seals on both sides for protection against contaminants and grease retention.
M / MA: One-piece machined brass cage with retaining flanges for maximum load capacity.
DB / DF: Matched bearing sets (Back-to-Back or Face-to-Face) for improved life and performance.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring design for simplified housing and axial positioning.
V: Full complement of balls (no cage) for applications requiring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme conditions.

Cylindrical Roller Thrust Bearing | 8 |

A Cylindrical Roller Thrust Bearing is a robust engineering solution designed for heavy-duty applications where severe axial thrust and high peak loads....

➜ View More

Cylindrical Roller Thrust Bearing | 8 |

ISO Metric Series (8xxxx)

81100 Series (Light Series): Compact cross-section suitable for limited space and high-speed requirements.
81200 Series (Standard Series): The most widely used series, offering a balance of axial load capacity and service life.
89300 / 89400 Series (Heavy / Wide Series): Designed with larger rollers and wider washers to handle extreme axial forces and shock loads.

Component-Based Options (K Series)

K81100 / K81200 Series: Separate components for flexible assembly, easier mounting, and custom applications on smooth or stepped shafts.

Common Suffixes

LP: Optimized internal design for reduced friction and special roller guidance.
TN / TV: Reinforced glass fiber polyamide cages for light weight and protection against contaminants.
2RS: Contact seals on both sides for protection against dust, dirt, and grease retention.
M / MA: One-piece machined brass cage with retaining flanges for maximum load capacity.
HB1 / HB3: Enhanced surface hardness or high-capacity designs for extended life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
GS: Housing washer design for simplified assembly and axial positioning.
WS: Shaft washer versions for specialized mounting applications, often hardened.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme heat conditions.

Insert Bearing | Y |

An Insert Bearing (Y-Bearing) is a robust engineering solution designed for mounted applications where simple assembly and moderate shaft misalignment are persistent challenges. Structurally....

➜ View More

Insert Bearing | Y |

ISO Metric Series (YAR / YET)

YAR 200 Series (Heavy Series): Extended inner ring on both sides; suitable for applications with limited space but high-speed requirements.
YET 200 Series (Light Series): Standard type; offers a balance of load capacity and service life.
YEL / YSA Series (Specialized Series): Eccentric locking collars and wider rings to handle extreme radial forces and shock loads.

Locking Method Options (Grub / Eccentric)

YAR 205 / YET 205 Series: Functionally identical to standard versions; designed for easier mounting and secure attachment on smooth or stepped shafts.

Common Suffixes

2F / 2RF: Integral contact seals on both sides (F = standard; RF = multiple) for protection against contaminants and grease retention.
G2 / W33: Optimized internal design for relubrication; G2 indicates annular groove and lubrication holes in outer ring.
2RS / 2CS: Contact seals on both sides for protection against contaminants and grease retention.
VP / VA: One-piece reinforced composite or stainless steel cage for maximum load-carrying capacity.
E / E1: Enhanced X-life or high-capacity designs using advanced materials and geometry for longer life.

Common Prefixes

S / SS: Stainless Steel for corrosion resistance in chemical or marine environments.
F: Flanged outer ring for simplified housing and axial positioning.
UC / UK: Designed for Japanese industrial standards, featuring hardened cages.
HT: High Temperature; rings are heat-stabilized and compatible with high-temp lubricants.

Needle Roller Bearing | NA |

A Needle Roller Bearing (NA Type) is a robust engineering solution designed for heavy-duty applications where high radial load capacity and precision....

➜ View More

Needle Roller Bearing | NA |

ISO Metric Series (NA 4xxx / 6xxx)

NA 4800 Series (Light Series): Compact cross-section suitable for limited space and high-speed applications.
NA 4900 Series (Standard Series): The most commonly used series, offering a balance of load capacity and service life.
NA 6900 / NA 5900 Series (Heavy / Wide Series): Built with larger rollers and wider rings to handle extreme radial forces and shock loads.

Separable Ring Options (RNA Series)

RNA 4900 / RNA 6900 Series: Design without inner ring for direct use on hardened shafts; functionally identical to NA versions but allow easier mounting and reduced radial height.

Common Suffixes

RS / 2RS: Integral contact seals on one or both sides for protection against contaminants and grease retention.
TN / TV: Reinforced glass fiber polyamide cages for reduced friction; often includes annular groove and lubrication holes.
P5 / P6: Enhanced precision classes for tighter tolerances; protection against contaminants and grease retention.
M / MA: One-piece machined brass cage or steel cage for maximum load-carrying capacity.
XL: Enhanced X-life or high-capacity designs using advanced materials and geometry for longer life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring for simplified housing and axial positioning.
NK: Specifically designed for needle roller bearings without inner rings, featuring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme conditions.

Four Point Contact Ball Bearing | QJ |

A Four-Point Contact Ball Bearing (QJ Series) is a robust engineering solution designed for high-precision applications where space-saving axial support and combined....

➜ View More

Four Point Contact Ball Bearing | QJ |

ISO Metric Series (QJ 2xx / 3xx)

QJ 200 Series (Light Series): Compact cross-section suitable for limited space and high-speed applications.
QJ 300 Series (Standard Series): The most commonly used series, offering a balance of load capacity and service life.
QJ 1000 / QJ 1200 Series (Specialized Series): Designed with larger balls and wider rings to handle extreme radial forces and shock loads.

Split Ring Mounting Options (N2 Series)

QJ 200N2 / QJ 300N2 Series: Outer ring locating slots for pins to prevent rotation; functionally identical to standard versions but allow easier mounting and housing stability on smooth or stepped shafts.

Common Suffixes

MA / MB: Machined brass cage (outer or inner ring guided); MB indicates guidance by the inner ring.
N2: Two locating slots at 180° in the outer ring to prevent spinning, including lubrication holes.
PH: Injection-molded polyetheretherketone (PEEK) cage for protection against contaminants and grease retention.
MPA: One-piece machined brass cage with retaining flanges for maximum load-carrying capacity.
C3 / C4: Internal clearance greater than Normal, using advanced materials and geometry for longer service life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring for simplified housing and axial positioning.
V: Full complement of balls (no cage) for applications featuring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme conditions.

Needle Roller Bearing | HK |

A Needle Roller Bearing (HK Type) is a robust engineering solution designed for space-constrained applications where extreme radial compactness and heavy....

➜ View More

Needle Roller Bearing | HK |

ISO Metric Series (HK xxxx)

HK 0800 Series (Light Series): Compact cross-section suitable for limited space and high-speed requirements.
HK 1500 Series (Standard Series): The most commonly used series, offering a balance of load capacity and service life.
HK 2200 / HK 3000 Series (Heavy / Wide Series): Built with longer rollers and wider cups to handle extreme radial forces and shock loads.

Closed End Options (BK Series)

BK 1512 / BK 2016 Series: Closed-end cup designs for environmental protection; functionally identical to open versions but allow easier sealing and lubricant retention.

Common Suffixes

RS / 2RS: Integral contact seals on one or both sides for protection against contaminants and grease retention.
TN / TV: Reinforced glass fiber polyamide cages for reduced weight and protection against contaminants.
AS1 / AS2: Thinner lubrication hole designs on one or both sides for protection against contaminants.
M / MA: One-piece machined brass cage or steel cage for maximum load-carrying capacity.
XL: Enhanced X-life or high-capacity designs using advanced materials and geometry for longer life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring for simplified housing and axial positioning.
IR / LR: Specifically designed inner rings for use with needle cages, featuring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme heat conditions.

Cylindrical Roller Bearing | N |

A Cylindrical Roller Bearing (N Series ) is a robust engineering solution designed for high-speed applications where significant radial expansion and heavy loads....

➜ View More

Cylindrical Roller Bearing | N |

ISO Metric Series (N 2xx / 3xx)

N 200 Series (Light Series): Compact cross-section suitable for limited space and high-speed requirements.
N 300 Series (Medium Series): The most widely used series, offering a balance of load capacity and service life.
N 400 / N 2300 Series (Heavy / Wide Series): Designed with larger rollers and wider rings to handle extreme radial forces and shock loads.

Alternative Flange Options (NU/NJ/NUP)

NU 200 / NJ 300 Series: Different flange designs for locating or semi-locating positions, functionally identical to N versions but with mounting flexibility for smooth or stepped shafts.

Common Suffixes

E / EC: Optimized internal design for increased load capacity; EC includes annular groove and lubrication holes in the outer ring.
M / MA: Machined brass cage guided by rollers or outer ring, for protection against contaminants and grease retention.
TN9 / TVH: Reinforced glass fiber polyamide cages for high-speed operation and contamination protection.
P5 / P6: Enhanced precision or high-accuracy designs for maximum load-carrying capacity.
C3 / C4: Internal clearance greater than Normal, using advanced materials and internal geometry for longer service life.

Common Prefixes

S / SS: Stainless steel construction for corrosion-resistant environments.
F: Flanged outer ring for simplified housing and axial positioning.
RN: Designed without an outer ring, featuring hardened cages.
HT: High-temperature version with heat-stabilized rings and specialized lubricants for extreme heat conditions.

Facebook-f X-twitter Youtube Instagram

Accessibility Legal Notices Terms Of Use Privacy Statement Site Map
